Technical benches for LC-MS, GC-MS and ICP-MS

The instrument on top and the vacuum pumps inside, in a soundproofed, ventilated compartment. Less noise, less vibration and everything tidy.

Prefer to be guided? Request a bench quote →

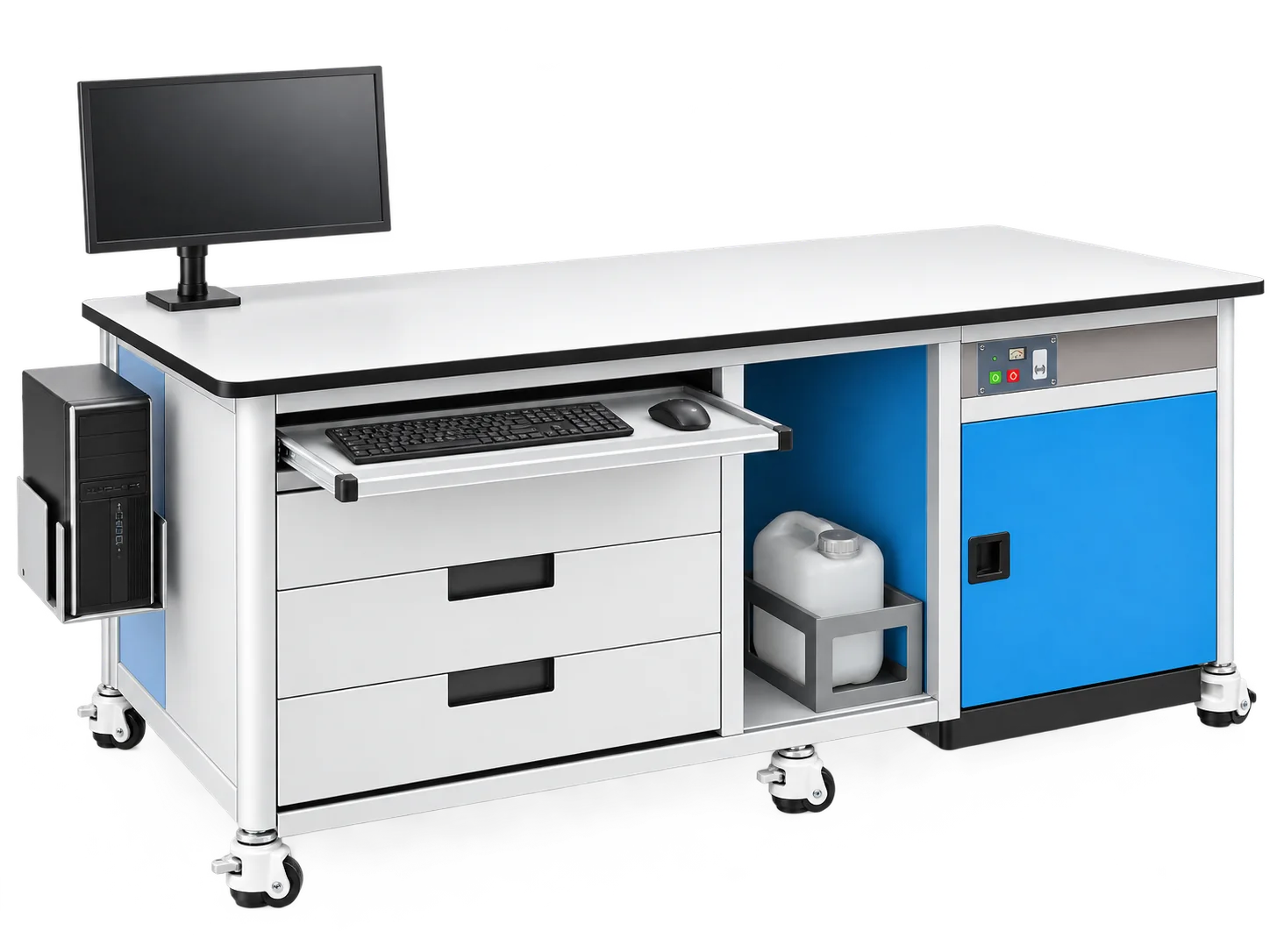

ZenBench technical bench with pump compartment, drawers and monitor arm

Installing several benches? Try them in your room with LabFit Planner: real dimensions, clear service zones and a 3D view.Open LabFit Planner →

Which instruments

Configurations by technique

LC-MS / LC-MS/MSGC-MSICP-MSQ-TOF and high resolutionHPLC / UHPLCAuxiliary benches
≈20 dB(A)

Soundproofing

Compartment for one or two pumps with 50 mm acoustic insulation. According to the manufacturer, noise drops by about 20 dB(A): roughly four times quieter.

20 → 35 °C

Automatic ventilation

Fans start at 20 °C and speed up to full power at 35 °C. They renew the air in the compartment every 2 seconds.

56 · 61 · 70 °C

Alarm with battery

Light and sound warning in three levels. It keeps working during a power cut.

Ø 150 mm

Heat out of the lab

Optional collector for 2, 3, 4 or 6 fans: the warm air leaves the lab through a duct.

Silentblocks

Anti-vibration tray

The pump sits on a tray with silentblocks that absorbs its vibrations.

HPL + aluminium

Materials suited to the laboratory

Chemical-resistant 20 mm Fundermax worktop, 12–13 mm HPL panels and an aluminium frame that does not rust.

500 kg

Sturdy frame

Up to 500 kg depending on model and configuration, for spectrometer, chromatograph and peripherals.

Wheels + feet

Mobile and stable

Rolls on wheels for maintenance and stands firm on levelling feet while working.

See all technical data →

Standard and optional

What every bench includes, and what you can add

Many manufacturers sell as extras what ZenBench includes as standard. Choose the accessories you need and we add them to your quote.

Included as standard

Acoustic insulationPump compartment with 50 mm acoustic insulation: up to 20 dB(A) less noise.
Automatic ventilationThe fans start on their own from 20 °C and reach full speed at 35 °C. They renew the air in the compartment every 2 seconds.
Temperature panelShows the temperature of the pump compartment, with an on/off button.
Alarm with batteryLight and sound warning in three levels (56, 61 and 70 °C). It keeps working during a power cut.
Anti-vibration trayThe pump sits on silentblocks that absorb its vibrations, so they do not reach the instrument.
HPL worktop20 mm compact HPL worktop, resistant to chemicals. The panels are HPL too.
Aluminium frameAn aluminium frame that does not rust. Up to 500 kg, depending on model and configuration.
Cable passagesOpenings for cables and tubes between the pump compartment and the instrument.
Wheels and levelling feetThe bench rolls on wheels for maintenance and stands firm on its levelling feet while you work.

Optional accessories

Back of a ZenBench bench with two heat exhaust collectors and their duct outlets

Heat exhaust collector

MS benches

It screws onto the fans at the back of the pump compartment (versions for 2, 3, 4 or 6 fans) and gathers all the warm air into one outlet for a 150 mm duct. Through the duct, the heat goes outside or into the building extraction instead of staying in the lab.

How it is installed →

Oil change kit: transfer pump in its case, with hoses and cables

Oil change kit

MS benches

To drain and change the vacuum pump oil with a transfer pump. It includes the transfer pump with suction and discharge hoses, an adapter for each vacuum pump, a valve and quick connectors. The adapter and the valve stay installed on the pump; the transfer pump plugs into the mains (220 V, 50 Hz) and has a vandal-proof switch. A spill tray and oil absorbents are also available.

ZenBench bench with a 3-drawer unit next to the pump compartment

Drawer units and shelves

MS benches

A 65 cm drawer unit with 3 drawers, on one side. On 190 cm benches, a 40 cm unit with 4 drawers can also go in the middle. Columns, vials and tools stay at hand next to the instrument. Shelves can be added too.

Power strip with switch mounted on the bench, next to two cable passages

Power strip

MS benchesHPLC benches

A power strip with a switch, mounted on the bench, so the instrument, the computer and the peripherals plug in at one point, with no extension leads across the floor.

Articulated monitor arm fixed to the worktop

Articulated monitor arm

MS benchesHPLC benches

It fixes to the worktop and holds the screen at the height and angle you prefer, without taking up space on the bench.

CPU holder on the side of the bench

CPU holder

MS benchesHPLC benches

It holds the computer tower on one side of the bench, off the floor and off the worktop.

Pull-out tray with keyboard and mouse under the worktop

Keyboard and mouse tray

MS benches

A pull-out tray under the worktop: it slides out when you work with the keyboard and mouse and slides back afterwards, leaving the worktop free for the instrument.

Blue ZenBench container for solvent bottles

Solvent container

MS benchesHPLC benches

A box for the HPLC solvent or waste bottles, to keep them together on the bench.

Heat

Every pump is a heater running day and night

As a lab grows, the air conditioning stops coping. A room planned for one LC-MS ends up with three, a generator and several people, and can reach 30 °C. Instruments suffer, and so do people.

Automatic ventilation

The bench fans remove heat from the pump compartment and speed up as the temperature rises.

Exhaust collector

It screws onto the fans (2, 3, 4 or 6) and channels the warm air into a 150 mm duct.

Duct to the outside

Through the false ceiling to the outside or to the building extraction, with an inline duct fan. Lower air-conditioning costs.

For everything to work well, the room should be between 20 and 24 °C, with 15–30 cm free behind the bench.

Request a quote with collector →

Bench control panel with temperature display and buttons
Configurations

We recommend the bench for your instrument

You don't need to know the part numbers. With your instrument's brand and model and the number of pumps, we propose the right configuration.

Accessories: monitor and CPU holders, power strips, drawers, shelves, solvent storage, heat exhaust collector and an oil drain pump kit.

Find the bench for your instrument →

FAQ

What people usually ask us

How much does a technical bench cost?

It depends on the model, the pumps, the accessories you choose and shipping to your country. Find your instrument in the bench finder and ask for a quote: we send you price and lead time within 24-48 h of having all the details, with no obligation.

Show my bench →

What information do you need to give me a price?

The instrument's brand and model, how many vacuum pumps it has and whether a chromatograph will sit on the same bench. A photo or the dimensions of the space help, but they're not essential.

Is it compatible with my instrument?

There are configurations for the leading manufacturers. We check it with ZenBench's technical team before sending you the proposal.

Do you ship internationally?

We welcome international enquiries. Shipping availability, cost and timing are confirmed case by case in the proposal.

How long does production take?

It depends on the configuration and destination. We give you the date in the proposal, before you decide.

Who provides the warranty?

The manufacturer, ZenBench: 3 years on benches and enclosures. We remain your contact for any issue.

What room temperature is needed?

Between 20 and 24 °C. Leave 15–30 cm free behind the bench so the warm air can escape and, if possible, connect it to a UPS.

Can the heat be taken out of the lab?

Yes. With the optional collector for 2, 3, 4 or 6 fans, the warm air leaves through a 150 mm duct to the outside or to the building extraction.

How is the pump oil changed?

Open the compartment door to reach the pump. An optional kit with a pump drains the oil.

What happens during a power cut?

The temperature alarm has a battery and keeps warning even without mains power.
