Home / Technical benches / HPLC benches
Manufacturer: ZenBenchThe whole chromatography system on one stable bench at the right working height: electrically adjustable from 66 to 102 cm or fixed, with up to 300 kg of load. Type your system and see which bench it needs.
Prefer to be guided? Request a bench quote →
Both with a chemical-resistant worktop and up to 300 kg of load.
| Model | Worktop W × D (cm) | Height | Max. load |
|---|---|---|---|

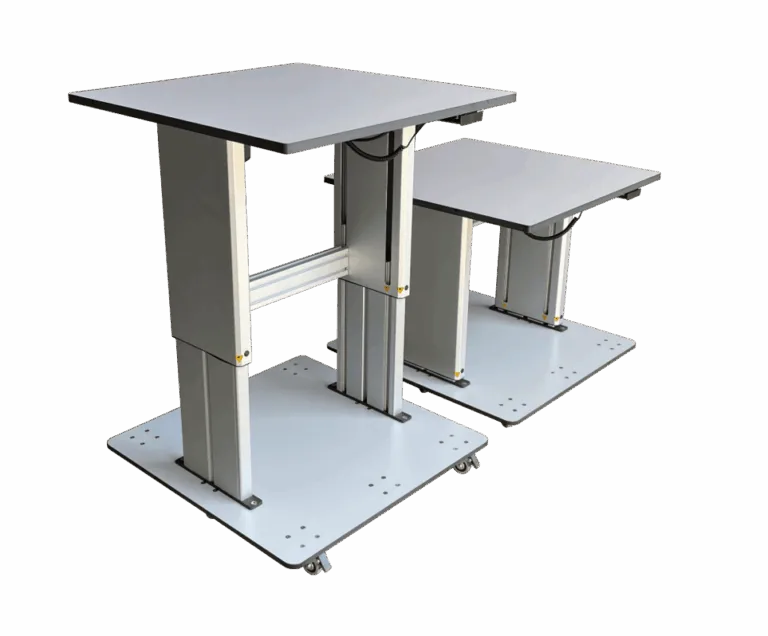

| ZenBench LC75 | 75 × 75 | 66–102 cm · electric | 300 kg |

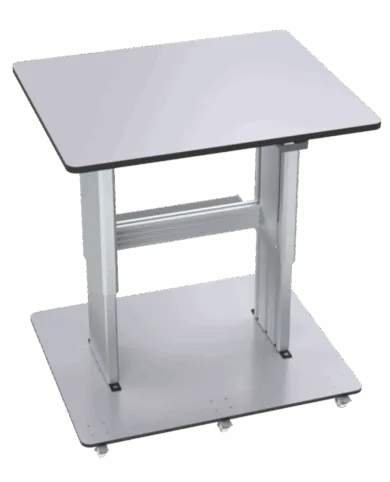

| ZenBench LC90 | 90 × 75 | 66–102 cm · electric | 300 kg |
| ZenBench Z4560 | 45 × 60 | 50 / 75 / 83 cm | 200 kg |
| ZenBench Z4580 | 45 × 80 | 50 / 75 / 83 cm | 200 kg |

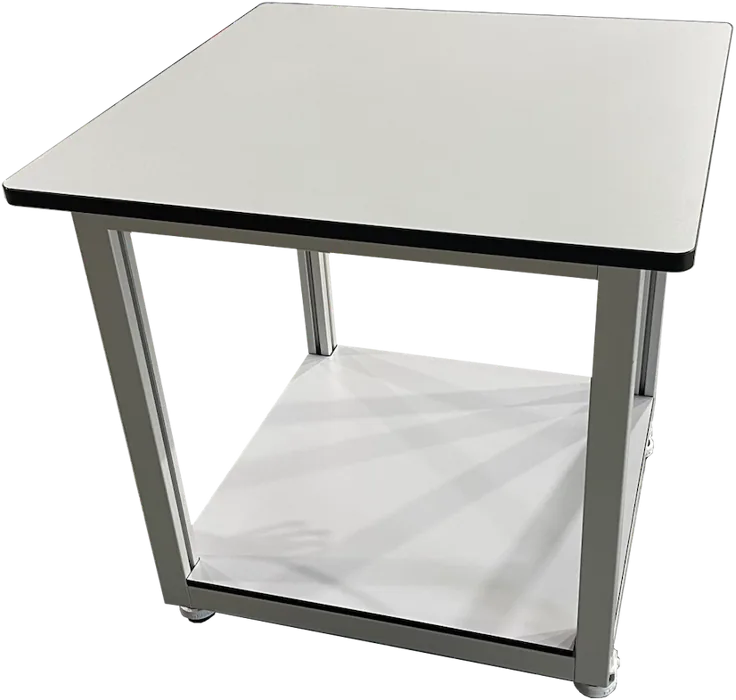

| ZenBench Z7575 | 75 × 75 | 50 / 75 / 83 cm | 300 kg |
| ZenBench Z9075 | 90 × 75 | 50 / 75 / 83 cm | 300 kg |
| ZenBench Z100 | 100 × 75 | 50 / 75 / 83 cm | 300 kg |
| ZenBench Z120 | On request | 50 / 75 / 83 cm | 300 kg |
| ZenBench Z150 | On request | 50 / 75 / 83 cm | 300 kg |
Click your system to see the recommended bench.
It depends on the model, the height (electric or fixed), the accessories you choose and shipping to your country. Find your system in the bench finder and ask for a quote: we send you price and lead time within 24-48 h of having all the details, with no obligation.
The electric benches (LC75 and LC90) adjust from 66 to 102 cm, so everyone can work at the height that suits them best. The Z series has a fixed height, 50 cm as standard or 75 or 83 cm, and the widest choice of sizes: from 45 × 60 to 100 × 75 cm, plus Z120 and Z150 for larger systems.
It depends on the system and how many modules it has. Type your model in the bench finder to see the recommended bench and the alternatives. It covers Agilent, Waters, Thermo Fisher Scientific, Shimadzu, SCIEX, PerkinElmer, Bruker and Analytik Jena; if yours isn't there, send us the brand and model.
Then you need a bench for LC-MS: the spectrometer and the HPLC on the same bench, with the vacuum pumps soundproofed inside. Type the spectrometer model in the bench finder.
Yes. If your system or your space needs something different, we work out a bench made for you with the manufacturer, ZenBench. Tell us about your case.
That's all we need to get started. We'll work out the rest with you.
